Liquid Nitrogen Blast Tunnel Freezer 1000kg/H 2000kg/H For Crayfish N2 IQF

Product Categories
Shenzhen Dejieli Refrigeration Technology Co., Ltd.
Contact Now

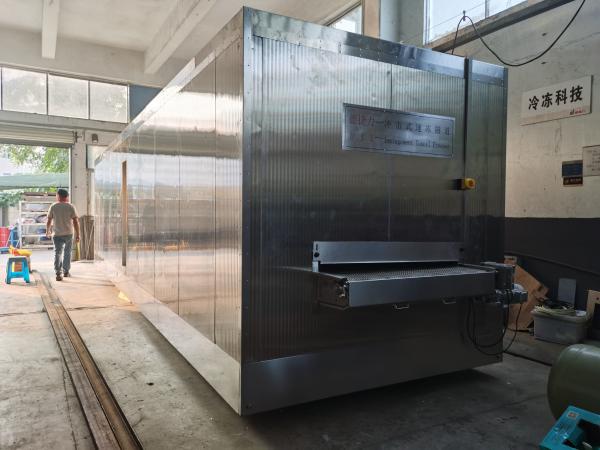

Liquid Nitrogen Blast Tunnel Freezer 1000kg/H 2000kg/H For Crayfish N2 IQF

  • 1
  • 2

Brand Name : DJL

Model Number : DJL-IQF-1216F

Certification : ISO9001

Place of Origin : Guangdong, China

MOQ : 1set

Price : negotiable

Payment Terms : T/T

Supply Ability : 100 Set/Sets per Year

Delivery Time : 30-45 working days

Packaging Details : sea shippment package

After Warranty Service : Video technical support, Field maintenance and repair service

Type : Tunnel Type Freezer

Voltage : 220V/50Hz, adjustable

Power : 18kw

Cooling rate : equal to 21℃/min

Heating rate : equal to 3℃/min

Contact Now

DJL IQF Blast Tunnel Freezer Quick Freezer For Crayfish / Crayfish Tunnel Shock Freezer

Product Description

DJL IQF Blast Tunnel Freezer Quick Freezer For Crayfish / Crayfish Tunnel Shock Freezer realizing individual quick freezing and preventing adhesion. It is mainly suitable for quick freezing of granules, flakes and blocky foods such as vegetables, fruits, fungi and seafood.


Regular Specifications

Equipment material: the internal and external parts of equipment body are made of SUS304 stainless steel, which is durable in use without any corrosion.
Working temperature: -35℃~room temperature
Temperature control precision: ±2℃
Temperature uniformity: ±5℃
Outline dimension: 12*2.7*2.6 meters
Frozen capacity 1000kg/h
Food transportation: The SUS304 special food conveyor belt is equipped with variable frequency and variable speed motor, the transportation speed can be adjusted flexibly as per different products; Furthermore, the equipment is equipped with belt elastic automatic regulating device, to ensure the stable and long-term operation of food transportation belt.
Equipment maintenance: The equipment side is equipped with maintenance & cleaning gate to facilitate the cleaning and maintenance of conveyor. The bottom of engine body is equipped with drainage outlet to drain water from the equipment. The whole equipment is long life, low consumable design, the easily-damaged parts can be replaced easily and rapidly with excellent maintainability.


1. Stainless steel conveyor belt;
2. Sandwich PUF panels 120mm thick, laminated by stainless steel sheet both sides; floor panels are equipped;
3. Doors are equipped with frame heating device;
4. Aluminum evaporators, different fin pitches;
5. Axial fans: stainless steel air box, aluminum blades;
6. Full welded stainless steel water discharging plate is installed on top of floor panels. It will bring defrosting water out of cabinet through stainless steel draining pipes;
7. The inlet device, outlet device and all structure parts are made of stainless steel;
8. Control panel is made of stainless steel;
9. Schneider or Siemens electric components;
10. SEW speed reducer.


Liquid Nitrogen Blast Tunnel Freezer 1000kg/H 2000kg/H For Crayfish N2 IQF




Packaging & Shipping

Liquid Nitrogen Blast Tunnel Freezer 1000kg/H 2000kg/H For Crayfish N2 IQF

Our Services

  • We can customize all kinds of equipments which is suitable for customer site's specification, the personilized product can be designed and manufactured according to customer's requirements.
  • The partition module can be designed flexibly as per customer's requirements, to obtain the minimum energy consumption; Meanwhile, different technologies can be operated at one machine to process different products.
  • We can provide the total solution of ultra-low refrigeration and quick freezing technology for customers.
  • The product is of one year free warranty with the lifelong maintenance.
  • If there are some problems when the product is in use, the engineering technician will put forward the corresponding solution timely and assist the user to ensure the normal production.
  • The latest research achievement and test data shall be shared with customers by the company, and the equipment upgrading service shall be provided for customers in need
